Name: Rotary vane pump RZ 9 Series
SKU: RZ 9

very high flow rates even at vacuum levels approaching ultimate vacuum
high water vapor tolerance due to efficient gas ballast; very good ultimate vacuum even with gas ballast
vacuum-tight at switch-off; external anti-suckback valve not needed
large oil volume: Long intervals between oil changes
ease of maintenance due to telescopic design

The RZ 9 is a two-stage powerful rotary vane pump for fast evacuation of vessels and at higher gas flow rates.

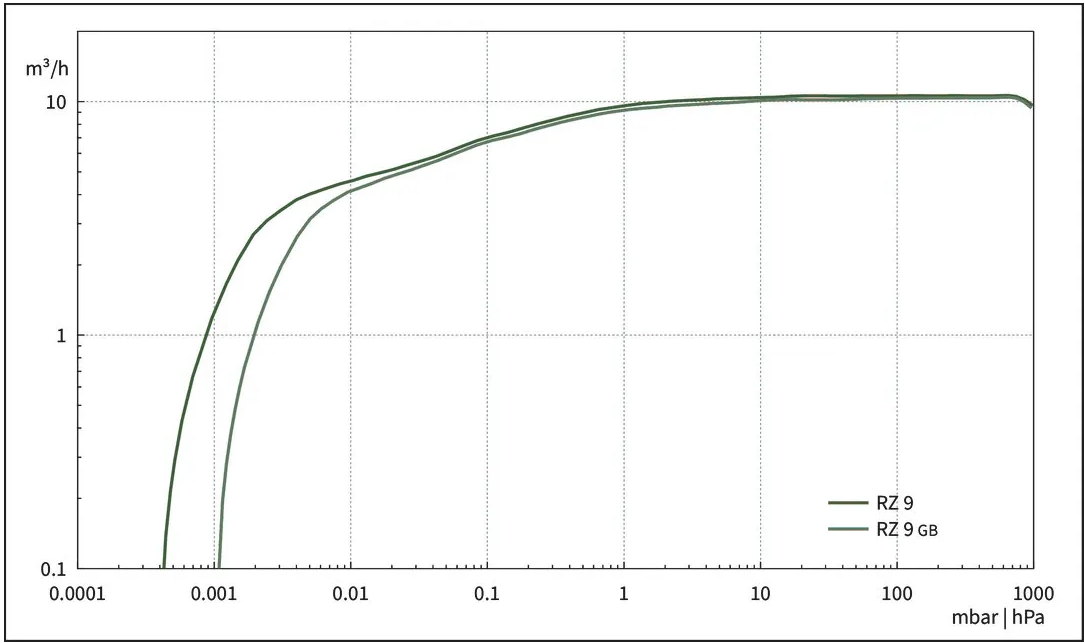

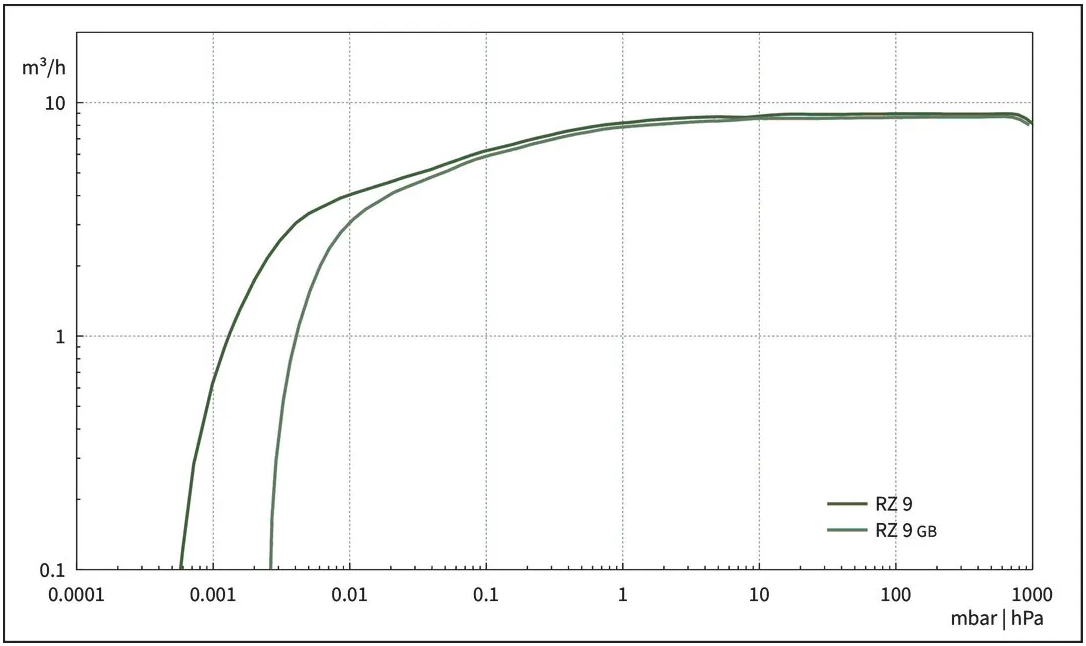

Max. pumping speed 50 Hz	8.9 m³/h
Max. pumping speed 60 Hz	6.0 cfm
Ultimate partial vacuum (abs.) without gas ballast	4 x 10⁻⁴ mbar
Ultimate vacuum	2 x 10⁻³ mbar / 1.5 x 10⁻³ torr
Ultimate vacuum with gas ballast	1 x 10⁻² mbar / 0.75 x 10⁻² torr
Number of stages	2
Water vapor tolerance with gas ballast	40 mbar
Lower ambient temperature (operation)	15 °C
Upper ambient temperature (operation)	40 °C
Lower ambient temperature (storage)	-10 °C
Upper ambient temperature (storage)	60 °C
Max. back pressure (abs.)	1.1 bar
Oil capacity (B-Oil) min.	0.45 l
Oil capacity (B-Oil) max.	0.85 l
Inlet connection	small flange KF DN 25
Outlet connection	small flange KF DN 25
Rated motor power	0.30 kW
Rated motor speed at 50/60 Hz	1500/1800 min⁻¹
Protection class IEC 60529	IP 40

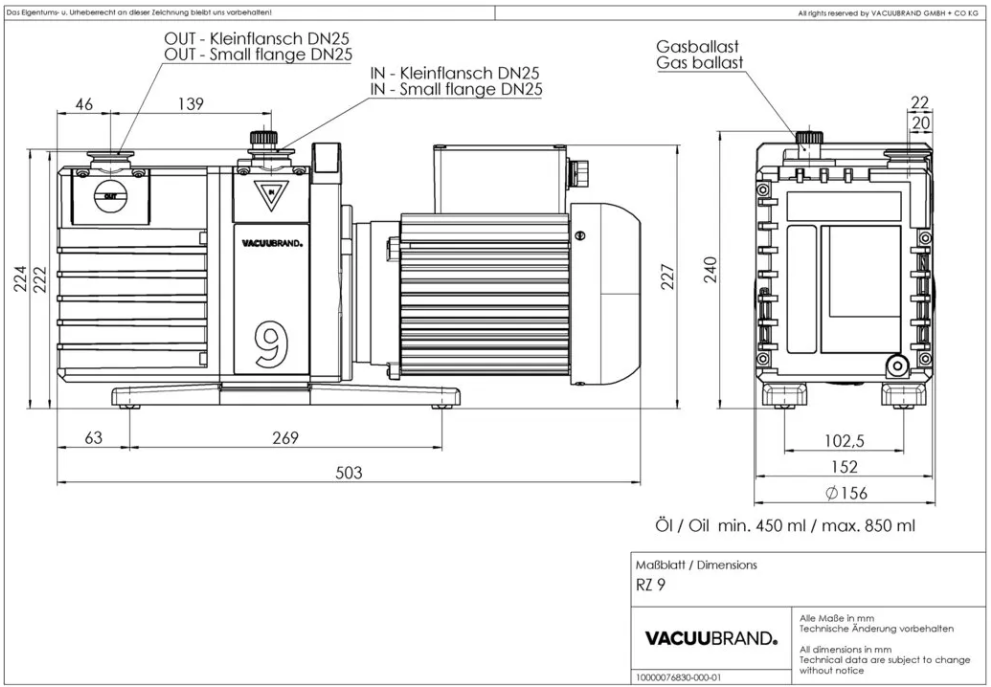

Dimension L x B x H in mm	503 x 156 X 240 mm
Weight	24.8 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®)	52 dBA
NRTL certification	No
Items supplied	Pump oil filled and completely mounted, ready for use, with manual.
Rated mains voltage range 1	230 V
Mains frequency 1	50-60 Hz
