Name: Bioshaker รุ่น BR-43FL
SKU: BR-43FL

BR-43FL Series Bioshaker

Widely used for Cultivation of microbes such as Yeasts, E. coli, etc. that require temp. control and shaking. Sufficient capacity, Space saving, and High versatility.

Applications

Cultivation of microbes such as E. Coli, etc.
Cultivation of Yeasts and Insect cells

Features

Single swing door (Leftward open) for easy shading

The front door opens to the left, but it can be changed to open to the right for your convenience with the “LR Select Door” (distributor will make the change, please contact us). Combined with two-tiered stacking, it contributes to space saving (optional stackable base is required; the Lift-up door type is only for the upper of stacked units).
Excellent performance for microbial cultures thanks to the shaking speed of Max. 300 r/min as well as 200 r/min at the upper of stacked units. The program function is also available.

LED irradiation unit is available as an option.

LED (Light emitting diode) irradiation unit Is available as an option. Good effect on
photosynthesis. *Recommended to use with Small and Medium sized unit.

Sliding retractable control panel

Control panel is retractable; saving space and user friendly.

Temperature range	+4ºC to +70ºC (For low to medium temperatures)
Shaking motion	Reciprocal/Orbital
Temp. control accuracy	±0.3 to ±1.0℃
Speed range	20 to 300 r/min (200 r/min at the upper of stacked units)
Shaking width	25 mm
Capacity	Universal shaking platform MT-4430: Erlenmeyer flask 500 mL × 8, Universal shaking platform MT-4030: Erlenmeyer flask 5 L × 1 *BR-40UL: 2 L × 2
Door type	Single swing door (Leftward open, Can be changed to rightward open)
Maximum load	approx. 7 kg (Platform and Vessel holder included)
Ambient temp. range	+5℃ to +35℃
Heating method	Heater 800 W
Cooling method	Compressor 140 W
Program functions	1 program, 9 segments: Temp., Shaking speed and time/per segment (Setting range: 00 h 00 min to 99 h 59 min), Temp. gradient function
Safety devices/functions	Leakage/Overcurrent breaker, Fuse, High temp, Alarm of abnormal sample temp. (Set as desired),Detecting the door opening and closing, Self-diagnosis function for sensor error, Motor current limiter, Compressor overheating cut-off circuit (BR-40UL and FL)

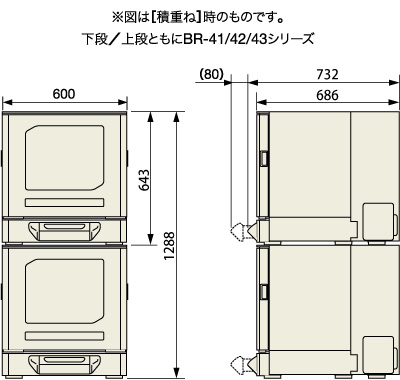

Dimensions (W × D × H)	600 × 732 × 643 mm
Weight	Approx. 98 kg
Power supply	AC100V/12A (Need a step-down transformer)
