Bioshaker รุ่น BR-42FM

BR-42FM Series Bioshaker

Widely used for Cultivation of microbes such as Yeasts, E. coli, etc. that require temp. control and shaking. Sufficient capacity, Space saving, and High versatility.

BR-42FM Series Bioshaker

Widely used for Cultivation of microbes such as Yeasts, E. coli, etc. that require temp. control and shaking. Sufficient capacity, Space saving, and High versatility.

Applications
  • Cultivation of microbes such as E. Coli, etc.
Features

Single swing door (Leftward open) for easy shading

BR 43stacked43

The front door opens to the left, but it can be changed to open to the right for your convenience with the “LR Select Door” (distributor will make the change, please contact us). Combined with two-tiered stacking, it contributes to space saving (optional stackable base is required; the Lift-up door type is only for the upper of stacked units).
Excellent performance for microbial cultures thanks to the shaking speed of Max. 300 r/min as well as 200 r/min at the upper of stacked units. The program function is also available.

LED irradiation unit is available as an option.

LED (Light emitting diode) irradiation unit Is available as an option. Good effect on
photosynthesis. *Recommended to use with Small and Medium sized unit.

Sliding retractable control panel

Control panel is retractable; saving space and user friendly.

BR pannel en
Temperature range

+5℃ above RT to +70℃ (For medium temperatures)

Shaking motion

Orbital

Temp. control accuracy

±0.3 to ±1.0℃

Speed range

20 to 300 r/min (200 r/min at the upper of stacked units)

Shaking width

25 mm

Capacity

Universal shaking platform MT-4430: Erlenmeyer flask 500 mL × 8, Universal shaking platform MT-4030: Erlenmeyer flask 5 L × 1 *BR-40UL: 2 L × 2

Door type

Single swing door (Leftward open, Can be changed to rightward open)

Maximum load

approx. 7 kg (Platform and Vessel holder included)

Ambient temp. range

+5℃ to +35℃

Heating method

Heater 800 W

Program functions

1 program, 9 segments: Temp., Shaking speed and time/per segment (Setting range: 00 h 00 min to 99 h 59 min), Temp. gradient function

Safety devices/functions

Leakage/Overcurrent breaker, Fuse, High temp, Alarm of abnormal sample temp. (Set as desired),Detecting the door opening and closing, Self-diagnosis function for sensor error, Motor current limiter, Compressor overheating cut-off circuit (BR-40UL and FL)

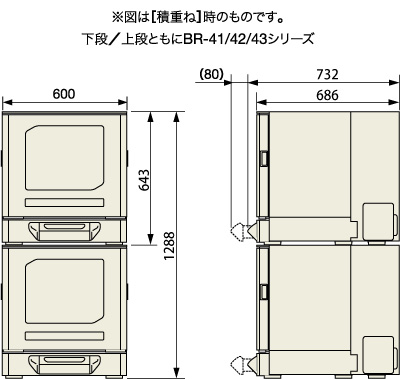

Dimensions (W × D × H)

600 × 732 × 643 mm

Weight

Approx. 80 kg

Power supply

AC100V/9A (Need a step-down transformer)
