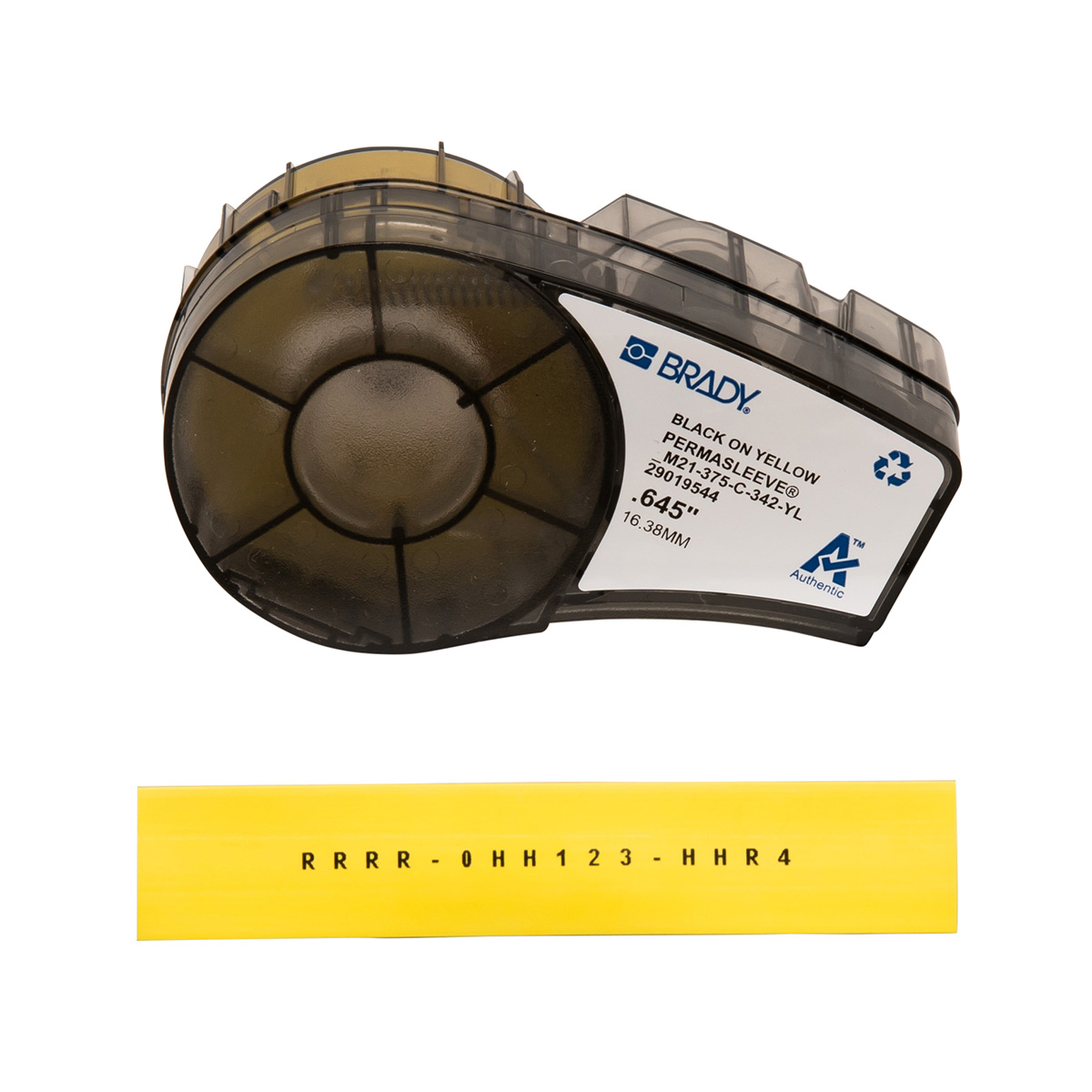

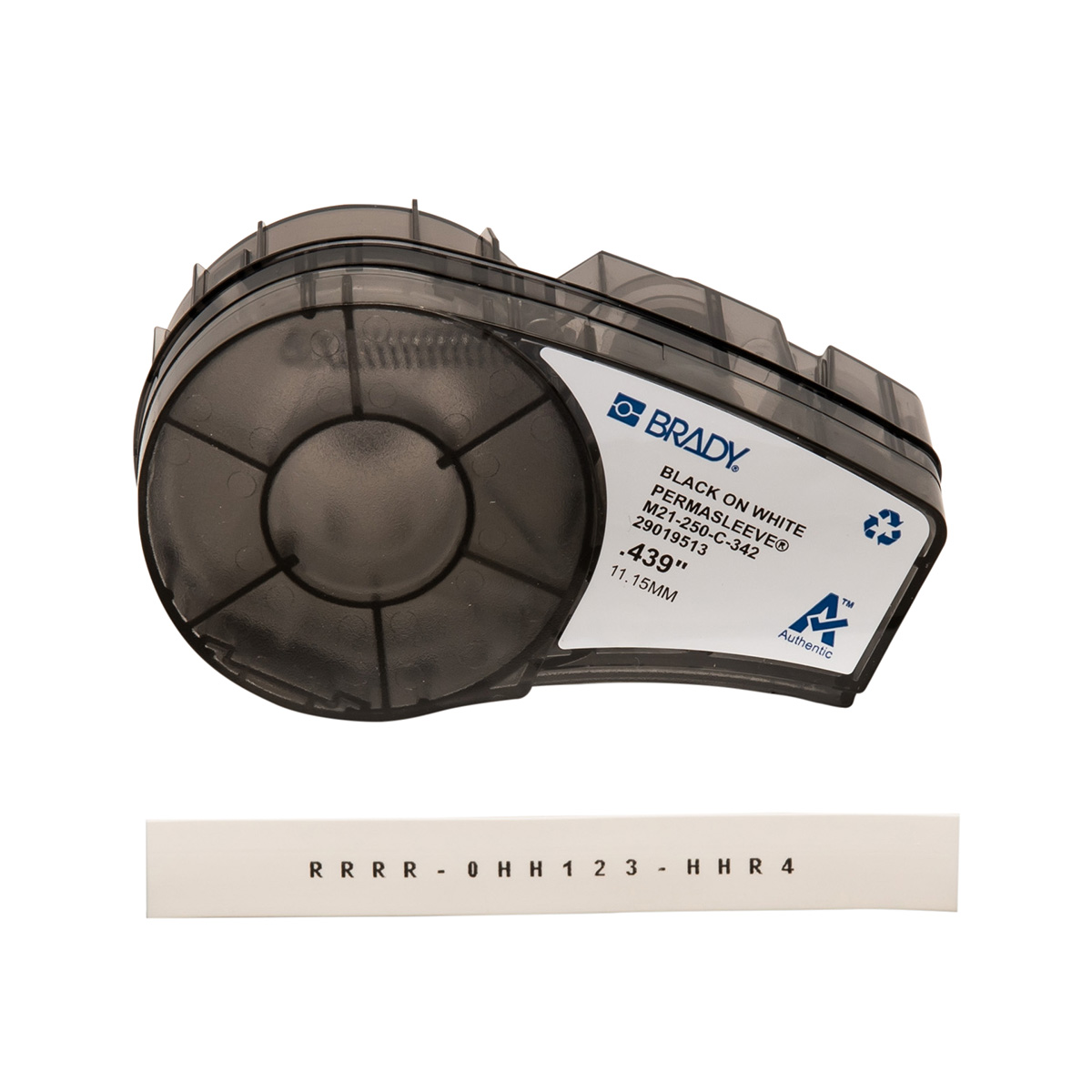

ฉลากฟิล์มหด (Heat Shrink) รุ่น PermaSleeve สำหรับเครื่องพิมพ์ M21

ฉลากหด (Heat Shrink) รุ่น PermaSleeve สำหรับสายไฟและสายเคเบิล พร้อม Ribbon สำหรับเครื่องพิมพ์ M21

Designed for rigorous wire marking applications, PermaSleeve® PS Heat Shrink Polyolefin (B-342) sleeves combine speed, ease of use, and permanence to create long lasting, high quality identification.

ฉลากฟิล์มหด (Heat Shrink) รุ่น PermaSleeve สำหรับสายไฟและสายเคเบิล พร้อม Ribbon สำหรับเครื่องพิมพ์ M21

Designed for rigorous wire marking applications, PermaSleeve® PS Heat Shrink Polyolefin (B-342) sleeves combine speed, ease of use, and permanence to create long lasting, high quality identification.
  • Industrial Grade – Extreme temperature resistance, UV resistant, Chemical resistant, Fuel and Oil resistant, Self-extinguishing
  • Superior Aesthetics – Crisp, clear identification resistant to abrasions and fading
  • Certifications – UL Recognized to UL 224, RoHS Compliant to 2011/65/EU (Pass 2015/863), SAE AS23053/5 (Class 1), SAE AS-81531, MIL-STD-202

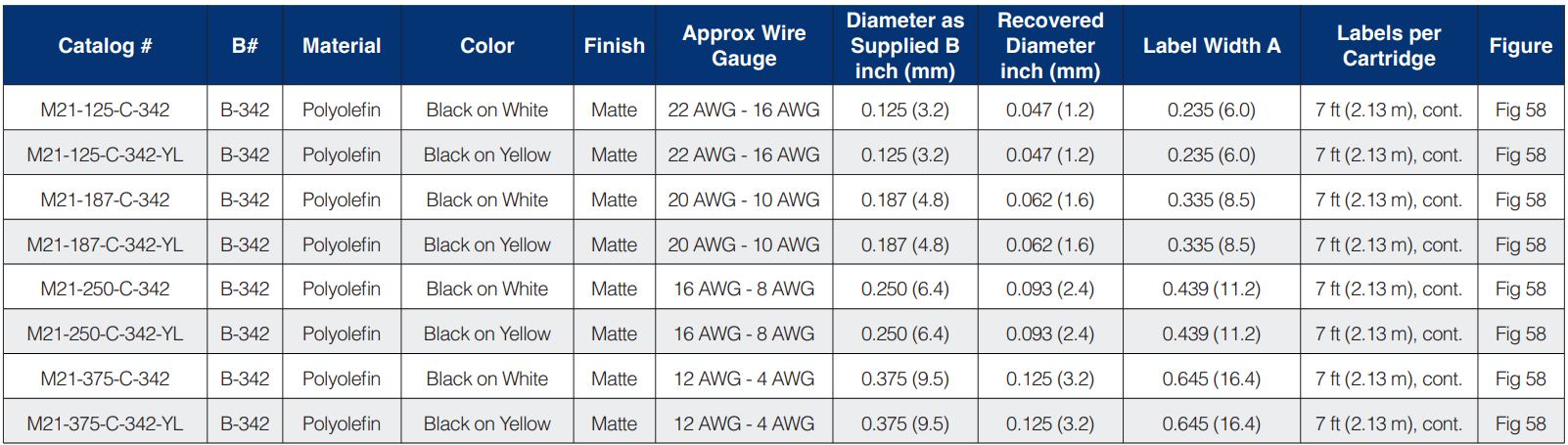

  • For material specific performance and properties, please refer to the Technical Data Sheet (TDS)
ขนาด

12 AWG – 4 AWG
16 AWG – 8 AWG
20 AWG – 10 AWG
22 AWG – 16 AWG

สี (สีตัวอักษร-สีฉลาก)

ดำ-ขาว
ดำ-เหลือง

วัสดุ

ท่อหด Polyolefin

คุณสมบัติของวัสดุ

สามารถชะลอการลามของไฟ สามารถดับไฟได้เอง และหดตัวเมื่อได้รับความร้อน

คุณสมบัติของ Label

Heat Shrink

ผิวสัมผัส

Matte

Shrink Ratio

3:1

ช่วงอุณหภูมิที่ใช้งานได้

-67 °F ถึง – 275 °F (-55°C ถึง -170.6°C)
